Наименование
Type |
Структура
Device |
Краткое описание
Short Description |
Корпус
Fig. |
Фото
Photo |
Возможные аналоги
Comparison types |
| 2SC5190 |
Si-N |
SMD,SHF/UHF-A,9V,30mA,10GHz |
35a(2mm) |
см.фото |
2SC4593 | 2SC4805 |
| 2SC5191 |
Si-N |
SMD,UHF,9V,0,1A,4000MHz |
35a |
см.фото |
2SC3356 |
| 2SC5192(R) |
Si-N |
SMD,UHF,9V,0,1A,4000MHz |
44 |
см.фото |
- |
| 2SC5193 |
Si-N |
SMD,UHF,9V,0,1A,4000MHz |
35a(2mm) |
см.фото |
- |
| 2SC5194 |
Si-N |
SMD,UHF,9V,0,1A,4000MHz |
44(2mm) |
см.фото |
- |
| 2SC5195 |
Si-N |
SMD,UHF,9V,0,1A,4500MHz |
44(2mm) |
см.фото |
- |

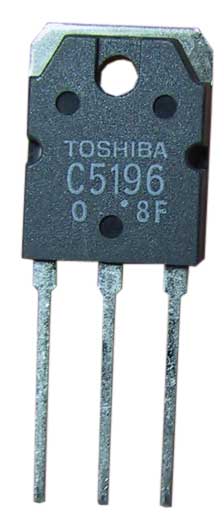

| 2SC5196 |
Si-N |
NF-HiFi-E,80/80V,6A,60W,30MHz |
18j |
см.фото |
BD245C | BDV93 | 2SC3256 | 2SD895 |

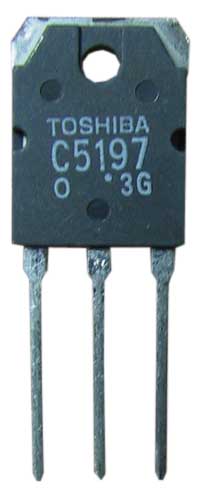

| 2SC5197 |
Si-N |
NF-HiFi-E,120/120V,8A,80W,30MHz |
18j |
см.фото |
BD245C | BD545D | 2SC3181 | 2SD718 |
| 2SC5198 |
Si-N |
NF-HiFi-E,140/140V,10A,100W,30MHz |
18j |
см.фото |
BD245D | 2SC2837 | 2SC2706 | 2SC3182 |
| 2SC5199-R |
Si-N |
NF-HiFi-E,180/180V,12A,120W,30MHz |
77j |
см.фото |
2SC3281 | 2SD1975 | 2SD1255 |

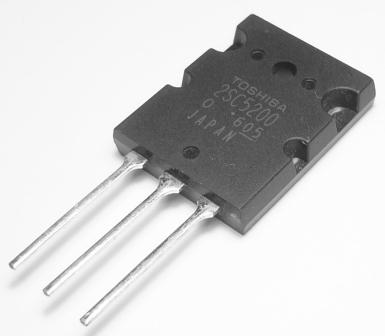

| 2SC5200 |
Si-N |
NF-HiFi-E,230/230V,15A,150W,30MHz |
|
см.фото |
2SC3281 | 2SC4029 |
| 2SC5201 |
Si-N |
S,600/600V,0,05A,0,9W,,30MHz,TO-92MOD |
7c(9mm) |
см.фото |
2SD1573 |
| 2SC5202 |
Si-N |
- |
|
см.фото |
- |
| 2SC5203 |
Si-N |
- |
|
см.фото |
- |
| 2SC5204 |
Si-N |
- |
|
см.фото |
- |
|
|
| 2SC5205 |
Si-N |
- |
|
см.фото |
- |
| 2SC5206 |
Si-N |
S-L,500/400V,5A,25W,tf=600ns |
17c |
см.фото |
2SC3570 | 2SC4026 | 2SC4073 | 2SC4418 |
| 2SC5207A |
Si-N |
Display-HA,1500/800V,10A,50W |
18c |
см.фото |
BU2520AF | BUH715 | 2SC5129 |
| 2SC5208 |
Si-N |
400V,0,8A,1,3W,B=20-80 |
|
см.фото |
- |
| 2SC5209 | compl.2SA1944 |
Si-N |
SMD,hi-beta,50V,1A,500mW,130MHz,B=600-1800,RH,RJ |
39b |
см.фото |
2SC3727 |
| 2SC5210 |
Si-N |
SMD,Vid,300/300V,0,1A,80MHz |
39b |
см.фото |
BFN18 | 2SC3380 | 2SC3515 | 2SC3554 | 2SC4189 |
| 2SC5211 | compl.2SA1945 |
Si-N |
SMD,Uni,50V,0,4A,150MHz,500mW,B=90-500, |
39b |
см.фото |
BCX55 | 2SC3444 | 2SD1006 | 2SD1767 |
| 2SC5212 | compl.2SA1946 |
Si-N |
SMD,Uni,20V,700mA,180MHz,500mW,B=150-800 |
39b |
см.фото |
BCX54 | 2SC3444 | 2SC4376 | 2SC4539 |
| 2SC5213 | compl.2SA1948 |
Si-N |
SMD,Uni,120V,0,1A,500mW,200MHz,B=150-800, |
39b |
см.фото |
- |
| 2SC5214 | compl.2SA1947 |
Si-N |
SMD,Uni,25V,1A,500mW,100MHz,B=55-300, |
39b |
см.фото |
BCX54 | 2SC3444 | 2SD1005 | 2SD1615 |
| 2SC5215 |
Si-N |
- |
|
см.фото |
- |
| 2SC5216 |
Si-N |
- |
|
см.фото |
- |
| 2SC5217 |
Si-N |
|
|
см.фото |
- |
| 2SC5218 | YK |
Si-N |
VHF/UHF,9V,50mA,150mW,900MHz,B=50-250 |
35a |
см.фото |
BFR183R | 2SC3583 | 2SC3904 | 2SC4591 |
| 2SC5219 |
Si-N |
Display-HA,1700/-V,8A,50W |
18c |
см.фото |
BUH517D | 2SC5143 |
|
|
| 2SC5220 |
Si-N |
- |
|
см.фото |
- |
| 2SC5221 |
Si-N |
S-L,490/490V,0,2A,10W,B>150 |
30j |
см.фото |
- |
| 2SC5222 |
Si-N |
S-L,500/500V,0,5A,10W,B>100 |
30j |
см.фото |
- |
| 2SC5223 |
Si-N |
S-L,500/500V,1A,10W,B>100 |
30j |
см.фото |
- |
| 2SC5224 |
Si-N |
S-L,500/500V,2A,10W,B>100 |
30j |
см.фото |
- |
| 2SC5225 |
Si-N |
Vid,100V,0,3A,0,625W,1,4GHz |
7e |
см.фото |
- |
| 2SC5226 |
Si-N |
SMD,VHF/UHF,20V,70mA,7GHz |
35a(2mm) |
см.фото |
BFS520 | 2SC5085 |
| 2SC5227 |
Si-N |
=2SC5226: |
35a |
см.фото |
BFR193 | BFR520 | 2SC3445 | 2SC5084 |
| 2SC5228 |
Si-N |
=2SC5226: |
44u |
см.фото |
2SC5087 |
| 2SC5229 |
Si-N |
=2SC5230:SMD |
39b |
см.фото |
BFQ193 | 2SC3301 | 2SC3607 |
| 2SC5230 |
Si-N |
VHF/UHF,20V,70mA,0,4W,6,5GHz |
|
см.фото |
- |
| 2SC5231 |
Si-N |
|
|
см.фото |
- |
| 2SC5232 |
Si-N |
|
|
см.фото |
- |
| 2SC5233 |
Si-N |
|
|
см.фото |
- |
| 2SC5234 |
Si-N |
|
|
см.фото |
- |
|
|
| 2SC5235 |
Si-N |
|
|
см.фото |
- |
| 2SC5236 |
Si-N |
|
|
см.фото |
- |
| 2SC5237 |
Si-N |
|
|
см.фото |
- |
| 2SC5238 |
Si-N |
|
|
см.фото |
- |
| 2SC5239 |
Si-N |
|
|
см.фото |
- |
|
|
